Product Description
Price is for EA.
Manufacturer Part Number: CI 109

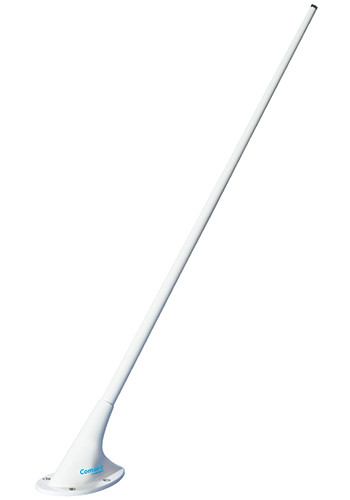

The CI 109 series antenna incorporates an aerodynamically shaped mounting base and radiator housing that matches the styling of the communication antennas used on the 1968-72 single engine Cessnas. The 109 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.
Features
Specifications
Weight:
0.60 lb
Height:
18-9/16 in.
Frequency:
18-137 MHz
VSWR:
2.5:1 maximum
Polarization:
Vertical
Radiation pattern:
Omnidirectional
Impedance (RF):
50 ohms
Power (RF):
50 watts
Temperature:
-55ºC to +85ºC
Altitude:
50，000 ft
Certifications:
FAA TSO C37d， C38d
The CI 109 series antenna incorporates an aerodynamically shaped mounting base and radiator housing that matches the styling of the communication antennas used on the 1968-72 single engine Cessnas. The 109 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.
Features
- 118-137 MHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- Aerodynamic base
- 4-hole mounting
- Cast housing
- Excellent electrical characteristics
Specifications
Weight:
0.60 lb
Height:
18-9/16 in.
Frequency:
18-137 MHz
VSWR:
2.5:1 maximum
Polarization:
Vertical
Radiation pattern:
Omnidirectional
Impedance (RF):
50 ohms
Power (RF):
50 watts
Temperature:
-55ºC to +85ºC
Altitude:
50，000 ft
Certifications:
FAA TSO C37d， C38d
Product Codes | |
|---|---|
| Mfr Part No: | CI 109 |
| ECCN: | 7A994 |
| PROAPP: | PT2316NM |
| SCHEDULE B CODE: | 8529.10.4000 |
| TSO: | C37d， C38d |
