Product Description
Price is for each.
Manufacturer Part Number: MS4110A1200

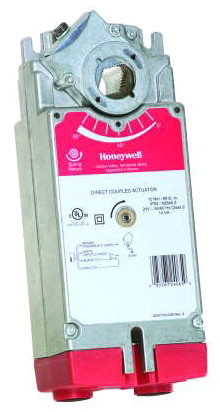

HONMS4110A1200 120v Two Position Spring Return Direct Coupled Damper/Valve Actuator 88 Lb-in Torque With 2 Switches
Part Description:
HONMS4110A1200 120v Two Position Spring Return Direct Coupled Damper/Valve Actuator 88 Lb-in Torque With 2 Switches
Part Description:
- Damper Actuator
- Type SPST， Direct Coupled， 2-Position
- Operation Type Spring Return， Manual Crank
- Voltage Rating 100 to 250 Volt AC
- Minimum AC Voltage 100 Volt
- Maximum AC Voltage 250 Volt
- Frequency Rating 50/60 Hertz
- Power Rating 45 Volt Amp (Driving)， 13 Volt Amp (Holding)
- Torque 88 Inch-Pound
- Angle of Rotation 95 Degree
- Enclosure NEMA 2
- Size 3.94 Inch Width x 2.95 Inch Depth x 9.72 Inch Height
- Shaft Diameter 3/8 to 1.06 Inch
- Body Material Aluminum
- Operating Temperature -40 to 140 Deg F (Ambient)
- Application HVAC System
- Approval UL 873， CUL C22.2， CE， C-Tick
- Connection Type Enclosed Screw Terminal Strip
- Timing 45 Second
- Includes (2) Auxiliary Switch
Features / Benefits
- Spring Return Direct Coupled Actuators are Used within Heating， Ventilating and Air-Conditioning System
- They Can Drive a Variety of 1/4 Turn， Final Control Elements Requiring Spring Return Fail Safe Operation
- Self-Centering Shaft Adapter for Wide Range of Shaft Size
- Manual Winding Capability with Locking Function
- Models Available for Use with Proportional Current or Voltage
- Spring Return Direction Field-Selectable
- Access Cover to Facilitate Connectivity
