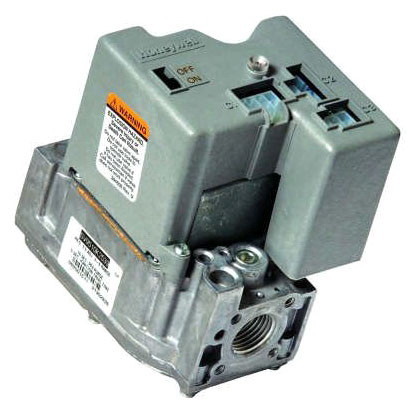

Honeywell SV9510K2539 24V 1/2 X 1/2 Direct Hot S...

• Gas Control Valve
• Type Slow Opening， Straight-Through
• Nominal Size 1/2 Inch
• End Connection Threaded x Threaded
• End to End Distance 3.2 Inch
• Input Supply Rating 24 Volt AC at 50/60 Hertz
• Temperature Rating -40 to 175 Deg F
• Pressure Rating 1/2 PSI
• Inclusions/Features Natural to Liquid Propane Conversion Kit
• Application Gas Fired Appliance， Residential Combustion Control， Rooftop Furnace， Boiler， Unit/Infrared/Water Heater and Commercial Cooking Appliance
• Applicable Standard CSA
• Overall Dimension 4.1 Inch Length x 4.9 Inch Height
• Ignition Type Direct Hot Surface
• Flame Failure Response Time 2 Second at 5 Microamp
• Ignition Trial Time 9 Second
• Prepurge Time 15 Second
• Capacity 20000 to 200000 BTU/Hour
• Pressure Tapping 1/8 Inch Threaded
• Pressure Regulator Set Point 3.5 Inch WC
• Mounting 0 to 90 Degree Vertical Installation

Features / Benefits

• The Control Communicates Directly with the St9160 Electronic Fan Timer (Eft) in Typical Forced Warm Air Furnace Applications
• It Can Directly Interface with the Appropriate Power Supplies and a System Thermostat for Additional Appliance Applications
• When Controlled Directly by a Thermostat， the Control Does Not Provide a Postpurge Function， as Power to the Control is Removed When the Thermostat Call for Heat Ends
