Product Description
Price is for each.
Manufacturer Part Number: SV9541Q2561

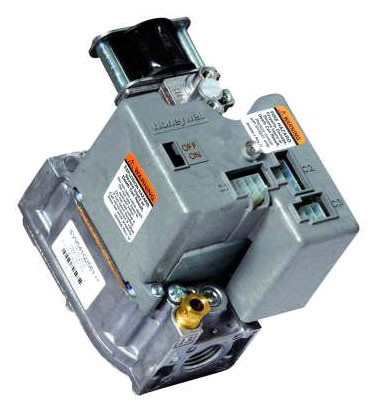

HONSV9541Q2561 24v 1/2" X 1/2" Two Stage Intermittent Hot Surface Pilot Ignition Smartvalve Control With Standard Opening And 1.7" WC Low / 3.2" WC High Pressure Regulator Setting Includes Lp Kit
Part Description:
HONSV9541Q2561 24v 1/2" X 1/2" Two Stage Intermittent Hot Surface Pilot Ignition Smartvalve Control With Standard Opening And 1.7" WC Low / 3.2" WC High Pressure Regulator Setting Includes Lp Kit
Part Description:
- Gas Control Valve
- Type 2-Stage， Standard Opening， Straight-Through
- Nominal Size 1/2 Inch
- End Connection Threaded x Threaded
- End to End Distance 3.2 Inch
- Input Supply Rating 24 Volt AC at 50/60 Hertz
- Temperature Rating -40 to 175 Deg F
- Pressure Rating 1/2 PSI
- Inclusions/Features Natural to Liquid Propane Conversion Kit
- Application Gas Fired Appliance， Residential Combustion Control， Rooftop Furnace， Boiler， Unit/Infrared/Water Heater and Commercial Cooking Appliance
- Applicable Standard CSA
- Overall Dimension 4.1 Inch Length x 4.9 Inch Height
- Ignition Type Intermittent Hot Surface Pilot
- Ignition Sequence Intermittent Pilot
- Flame Failure Response Time 1.6 Second at 3 Microamp
- Ignition Trial Time 90 Second
- Prepurge Time 15 Second
- Capacity 20000 to 200000 BTU/Hour
- Pressure Tapping 1/8 Inch Threaded
- Pressure Regulator Set Point 3.2 Inch WC
- Mounting 0 to 90 Degree Vertical Installation
Features / Benefits
- These Controls Communicate Directly with an Electronic Fan Timer (St9160 Electronic Fan Timer for Single Stage Applications
- St9162 Electronic Fan Timer for 2-Stage Applications) in Typical Forced Warm Air Furnace Applications
- It Can Directly Interface with the Appropriate Power Supplies and a System Thermostat for Additional Appliance Applications
- When Controlled Directly by a Thermostat， These Controls Do Not Provide a Postpurge Function， Because Power to the Control is Removed When the Thermostat Call for Heat Ends
