Product Description
Price is for each.
Manufacturer Part Number: V88A1634

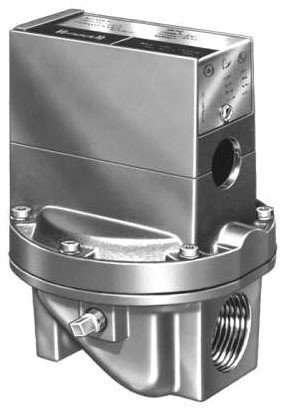

HONV88A1634 24v Diaphragm Gas Valve (1-1/2" Solenoid Operation 1/2 PSI
Part Description:
HONV88A1634 24v Diaphragm Gas Valve (1-1/2" Solenoid Operation 1/2 PSI
Part Description:
- Diaphragm Gas Valve
- Type NC， Slow Opening Fast Closing， Straight-Through， Non-Offset， Solenoid Operated
- Nominal Size 1-1/2 Inch
- End Connection Threaded x Threaded
- End to End Distance 3-11/16 Inch
- Body Material Die-Cast Aluminum
- Temperature Rating 32 to 125 Deg F
- Pressure Rating 1/2 PSI
- Application Atmospheric Boiler， Commercial Water/Rooftop Heater
- Applicable Standard UL， CSA
- Overall Dimension 5-5/16 Inch Width x 5-7/8 Inch Depth x 6-13/16 Inch Height
- Fuel Type Liquid Propane， Natural
- Mounting Position Upright (Horizontal)
- Connection Type 6 Inch Lead Wire
- Voltage Rating 24 Volt AC 60 Hertz
- Current Rating 0.62 Amp
- Power Rating 9 Watt
- Valve Operation Timing 5 Second (Open)， 2 Second (Close)
Features / Benefits
- Close Firmly with Diaphragm that is Both Weight and Spring Loaded
- Two Second Maximum Closing Time
- Valve Closes on Power Failure， Recommended for Final Shut-Off Service
- Set Opening Time with Various Sized Bleed Orifices or Adjustable Bleed Valve
