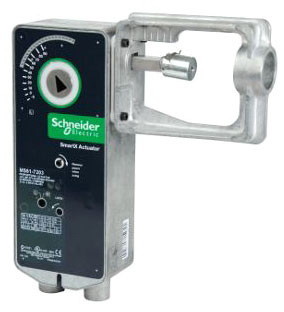

Schneider Electric MS51 7203 24V Modulating 2 10Vd...

• Valve Actuator
• Type Electric， Modulating， Proportional， Linear
• Operation Type Spring Return
• Voltage Rating 24 Volt AC， 20 to 30 Volt DC
• Maximum AC Voltage 24 Volt
• Minimum DC Voltage 20 Volt
• Maximum DC Voltage 30 Volt
• Current Rating 0.28 Amp
• Frequency Rating 50/60 Hertz
• Power Rating 7.4 Watt (Running)， 2.9 watt (Holding)
• Enclosure NEMA 2
• Size 10-5/8 Inch Width x 2-9/16 Inch Depth x 7 Inch Height
• Supply Connection Size 3 Foot Appliance Cable
• Body Material Polymer
• Operating Temperature -22 to 140 Deg F
• Application Globe Valve
• Approval UL (Canada and US)， UL， CUL， CE， C-Tick
• Control Signal Range 2 to 10 Volt DC， 4 to 20 Milliamp (DC)
• Nominal Force 220 Pound

Features / Benefits

• Overload Protection Throughout Stroke
• Automatically Sets Input Span to Match Valve Travel
• Compact Size to Allow Installation in Limited Space
• Manual Override to Allow Positioning of Valve and Preload
• Spring Return Operation to Valve Stem up Position
• Direct Mount to Valves without Separate Linkage
