Product Description

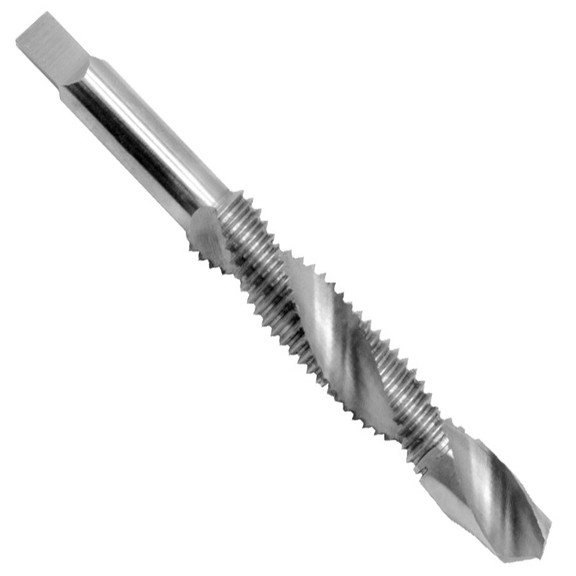

Drills and Taps in a singles pass. Point is self-centering and eliminates the need for center drilling or center punching.
Can be used on multi-spindle heads with reversing mechanisms in most materials.
Can be used on multi-spindle heads with reversing mechanisms in most materials.
| Order # | Manufacturer | Description | ||||
| 5782005 | MEDA - SUPERIOR IMPORT | Size: M3x0.5; Pitch Dia.: D3; Drill Length: 9/32; Drill Size:.1015 | ||||
| 2403050 | STAR USA | Size: M3x0.5; Pitch Dia.: D3; Drill Length: 9/32; Drill Size:.1015 | ||||
| 5782010 | MEDA - SUPERIOR IMPORT | Size: M3.5x0.6; Pitch Dia.: D4; Drill Length: 5/16; Drill Size:.1180 | ||||
| 2403560 | STAR USA | Size: M3.5x0.6; Pitch Dia.: D4; Drill Length: 5/16; Drill Size:.1180 | ||||
| 5782015 | MEDA - SUPERIOR IMPORT | Size: M4x0.7; Pitch Dia.: D4; Drill Length: 3/8; Drill Size:.1340 | ||||
| 2404070 | STAR USA | Size: M4x0.7; Pitch Dia.: D4; Drill Length: 3/8; Drill Size:.1340 | ||||
| 5782020 | MEDA - SUPERIOR IMPORT | Size: M4.5x0.75; Pitch Dia.: D4; Drill Length: 13/32; Drill Size:.1520 | ||||
| 2404575 | STAR USA | Size: M4.5x0.75; Pitch Dia.: D4; Drill Length: 13/32; Drill Size:.1520 | ||||
| 5782025 | MEDA - SUPERIOR IMPORT | Size: M5x0.8; Pitch Dia.: D4; Drill Length: 13/32; Drill Size:.1700 | ||||
| 2405080 | STAR USA | Size: M5x0.8; Pitch Dia.: D4; Drill Length: 13/32; Drill Size:.1700 | ||||
| 5782030 | MEDA - SUPERIOR IMPORT | Size: M6x1; Pitch Dia.: D5; Drill Length: 17/32; Drill Size:.2030 | ||||
| 2406010 | STAR USA | Size: M6x1; Pitch Dia.: D5; Drill Length: 17/32; Drill Size:.2030 | ||||
| 5782035 | MEDA - SUPERIOR IMPORT | Size: M7x1; Pitch Dia.: D5; Drill Length: 11/16; Drill Size:.2420 | ||||
| 2407010 | STAR USA | Size: M7x1; Pitch Dia.: D5; Drill Length: 11/16; Drill Size:.2420 | ||||
| 9782040 | MEDA - SUPERIOR IMPORT | Size: M8x1.25; Pitch Dia.: D5; Drill Length: 11/16; Drill Size:.2735 | ||||
| 2408012 | STAR USA | Size: M8x1.25; Pitch Dia.: D5; Drill Length: 11/16; Drill Size:.2735 | ||||
| 5782045 | MEDA - SUPERIOR IMPORT | Size: M10x1.5; Pitch Dia.: D6; Drill Length: 13/16; Drill Size:.3440 | ||||
| 2410150 | STAR USA | Size: M10x1.5; Pitch Dia.: D6; Drill Length: 13/16; Drill Size:.3440 | ||||
| 5782150 | MEDA - SUPERIOR IMPORT | Size: M12x1.75; Pitch Dia.: D6; Drill Length: 1-1/8; Drill Size:.4140 | ||||
| 2412175 | STAR USA | Size: M12x1.75; Pitch Dia.: D6; Drill Length: 1-1/8; Drill Size:.4140 | ||||
NOTE: Our manufacturers are continuously trying to improve their products and it is possible that some tools may undergo dimensional changes without prior notice. All technical data is based on information supplied by our manufacturers and is provided by us for your guidance.
