Product Description
Price is for EACH.
Manufacturer Part Number: CBFC-500

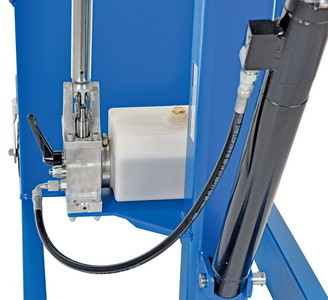

This Counter Balanced Floor Crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a manual hydraulic hand pump. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs. This makes the unit easier to maneuver and allows the crane to reach tight， hard to reach areas. Counterbalance included. Welded steel construction.
• Unique design allows access to hard to reach areas
• Counterbalance weights eliminate the need for legs
• Telescoping boom allows for greater reach when needed
• Solid steel construction provides a long lasting rugged use
• Material: Steel
• Uniform Capacity (lbs.): 500
• Uniform Capacity extended 39-1/4"(lbs.): 500
• Uniform Capacity extended 51-1/4" (lbs.): 400
• Uniform Capacity extended 63-5/16" (lbs.): 300
• Lowered Arm Fully Extended (in.): 5
• Raised Arm Fully Extended (in.): 90
• Base Length (in.): 70
• Base Width (in.): 29
• Boom Length Mininum/Maximun (in.): 53-1/2 to 77-1/2
• Design: Counter Balance
• Function: Floor Crane
• Rigid Caster Quantity/Diameter/Width (in.): (2)8 x 2
• Assembly Required: NO
Please Click Here for Repair Parts Diagram
Product Dimensions: 135.125''Length X 29''Width X 102''Height.
This Counter Balanced Floor Crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a manual hydraulic hand pump. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs. This makes the unit easier to maneuver and allows the crane to reach tight， hard to reach areas. Counterbalance included. Welded steel construction.
• Unique design allows access to hard to reach areas
• Counterbalance weights eliminate the need for legs
• Telescoping boom allows for greater reach when needed
• Solid steel construction provides a long lasting rugged use
• Material: Steel
• Uniform Capacity (lbs.): 500
• Uniform Capacity extended 39-1/4"(lbs.): 500
• Uniform Capacity extended 51-1/4" (lbs.): 400
• Uniform Capacity extended 63-5/16" (lbs.): 300
• Lowered Arm Fully Extended (in.): 5
• Raised Arm Fully Extended (in.): 90
• Base Length (in.): 70
• Base Width (in.): 29
• Boom Length Mininum/Maximun (in.): 53-1/2 to 77-1/2
• Design: Counter Balance
• Function: Floor Crane
• Rigid Caster Quantity/Diameter/Width (in.): (2)8 x 2
• Assembly Required: NO
Please Click Here for Repair Parts Diagram
Product Dimensions: 135.125''Length X 29''Width X 102''Height.
This item is oversize. we may contact you when we process the order.
